Earth Density Models

Test models of Earth density and electron fraction built into ASTERIA.

from astropy import units as u

import numpy as np
import matplotlib as mpl
import matplotlib.pyplot as plt

from asteria.matter import PREM, SimpleEarth

Density vs. Radial Distance

Compute radial distance and calculate the Earth’s density using the PREM model and a layered approximation to PREM in which the density is treated as constant in each layer.

r = np.linspace(0, 6370.99, 6372) * u.km
prem = PREM()
earth = SimpleEarth()

rho = prem.density(r)
rho_c = earth.density(r)

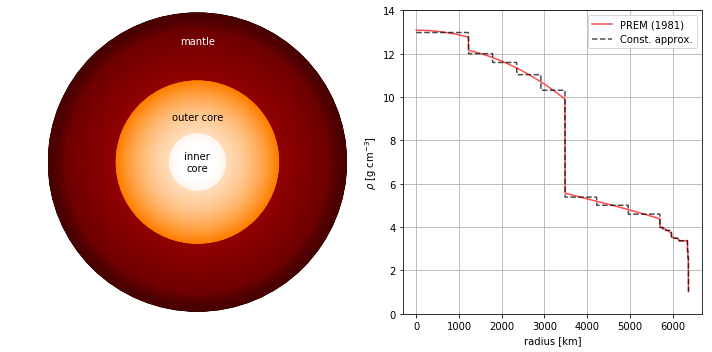

Plot Density Layers

fig, [ax0, ax1] = plt.subplots(1,2, figsize=(10,5))
patches = []
colors = []

for r1 in (np.linspace(6371, 3, 1000) * u.km):
    c = mpl.patches.Circle((0,0), r1.value)
    patches.append(c)
    colors.append(prem.density(r1).value)

p = mpl.collections.PatchCollection(patches)
p.set_array(np.asarray(colors))
p.set_clim(1, 13)
p.set_cmap('gist_heat')
ax0.add_collection(p)
ax0.set(aspect='equal',
        xlim=(-6371., 6371.),
        ylim=(-6371., 6371.))
ax0.axis('off')
ax0.text(0,0, 'inner\ncore', horizontalalignment='center', verticalalignment='center')
ax0.text(0,1800, 'outer core', horizontalalignment='center')
ax0.text(0,5000, 'mantle', horizontalalignment='center', color='w')

ax1.plot(r, rho, 'r-', label='PREM (1981)', alpha=0.7)
ax1.plot(r, rho_c, 'k--', label='Const. approx.', alpha=0.7)
ax1.set(xlabel='radius [km]',
        ylabel=r'$\rho$ [g cm$^{-3}$]',
        ylim=(0,14))
ax1.legend()
ax1.grid()

fig.tight_layout()

Electron Fraction vs. Radial Distance

Plot electron fraction \(Y_{e}\) as a function of radial distance from the core.

y_e = prem.y_e(r)
y_e_c = earth.y_e(r)

fig, [ax0, ax1] = plt.subplots(1,2, figsize=(10,4), sharex=True, sharey=True)

ax0.plot(r, y_e)
ax0.set(xlabel='radial distance [km]',
        ylabel='$Y_e$',
        ylim=(0.4,0.6),
        title='PREM (1981)')

ax1.plot(r, y_e_c)
ax1.set(title='Const. Layer Approx.')

fig.tight_layout()
